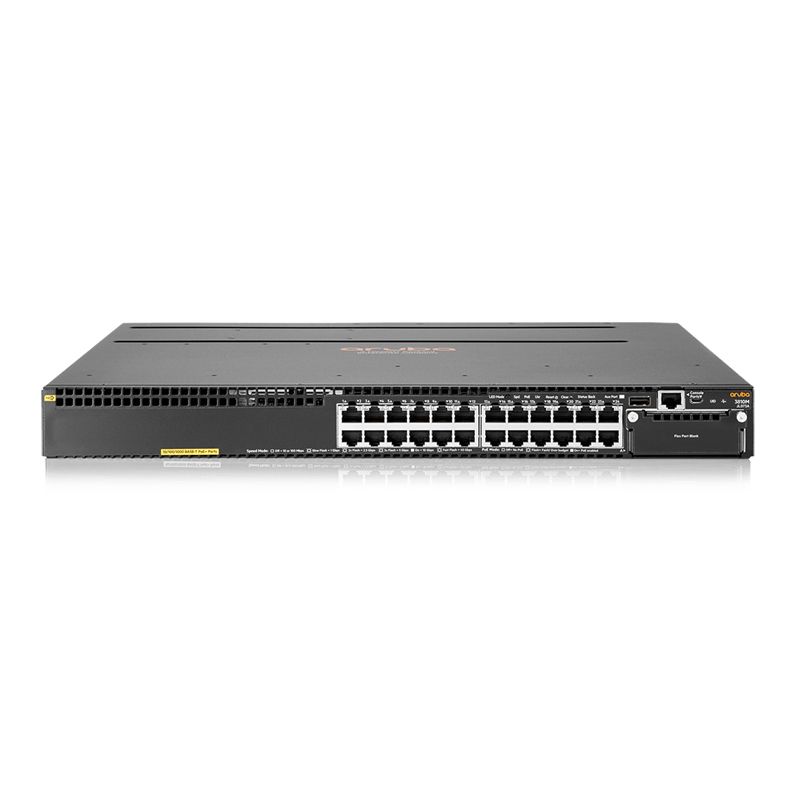

HPE JL073A – Aruba 3810M 24G PoE+ 1-slot Switch – 24 RJ-45 autosensing 10/100/1000 Poe+ ports & Ports 1 – 24 support MACSec

Categories: ,

Description

Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. This JL073A has 24 x 10/100/1000 PoE+ ports together with 1 x open module slots and a stacking module slot. It comes with a replaceable fan tray. It supports one or two power supplies; power supplies are ordered separately; choice of power supply dictates available Power over Ethernet. Available modules are: 4 x SFP+; 1 x 40GbE QSFP+; 2 x 40GbE QSFP+; 4 port stacking module.

Specification

Product Code JL073A
Type Aruba 3810M 24G PoE+ 1-slot Switch
I/O ports and slots 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,

IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
Duplex: 10BASE-T/100BASETX: half or full; 1000BASE-T: full only
Ports 1 – 24 support MACSec
1 open module slot

Supports a maximum of 4 SFP+ ports or 1 40GbE ports, with optional module

Additional ports and slots 1 stacking module slot
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1 dual-personality (RJ-45 or USB micro-B)
Power supplies 2 power supply slots
1 minimum power supply required (ordered separately)
Throughput: Up to 95.2 Mp/s (64-byte packets)
Dimensions (H x W x D) 4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) (1U height)
